Parser for GGUF (GPT-Generated Unified Format) files. More...

#include <cstddef>
#include <fstream>
#include <map>
#include <string>
#include <vector>
#include "gguf_structs.h"

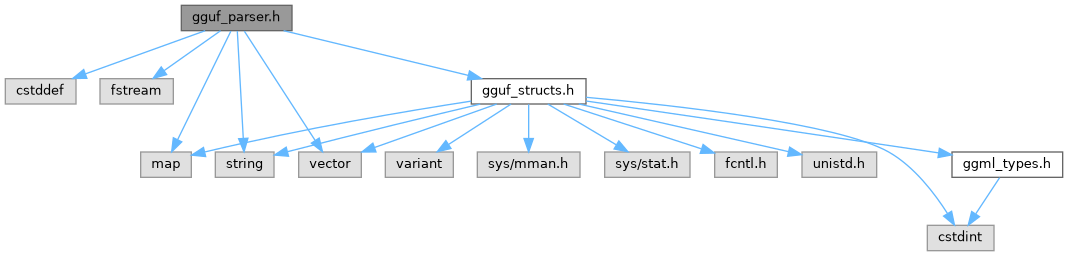

Include dependency graph for gguf_parser.h:

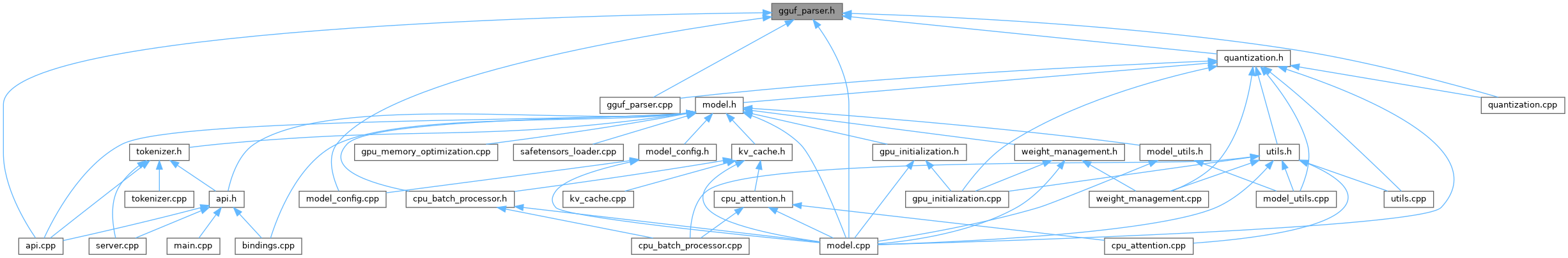

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
template<typename T >
void	read_raw (std::ifstream &file, T &dest)
	Reads raw binary data from a file stream.

std::string	read_gguf_string (std::ifstream &file)
	Reads a string from a GGUF format file.

GGUFData	load_gguf_meta (const std::string &filename, bool use_mmap)
	Loads GGUF metadata and optionally memory-maps tensor data.

Variables
constexpr uint32_t	GGUF_MAGIC = 0x46554747
	GGUF magic number that identifies the file format Spells "GGUF" in ASCII (0x47475546)

constexpr uint64_t	GGUF_DEFAULT_ALIGNMENT = 32
	Constants for GGUF file parsing and validation.

constexpr uint32_t	GGUF_MAX_TENSOR_DIMS = 4

constexpr uint64_t	GGUF_STRING_MAX_LENGTH = 1ull << 30

constexpr float	GGUF_EPSILON = 1e-10f
	Constants for numeric stability in calculations.

constexpr float	GGUF_SMALL_VAL = 1e-6f

constexpr size_t	GGML_QK_K = 256
	Block size constants for different quantization formats.

constexpr size_t	GGML_QK8_0 = 32

constexpr size_t	GGML_Q4K_BLOCK_SIZE = 32

constexpr size_t	GGML_Q6K_BLOCK_SIZE = 256

constexpr float	TENSOR_SCALE_MAX = 1000.0f
	Constants for tensor value validation.

constexpr float	TENSOR_SCALE_MIN = -1000.0f

constexpr float	Q4K_SCALE_FACTOR = 15.0f
	Scale factors for different quantization methods.

constexpr float	Q6K_SCALE_FACTOR = 31.0f

constexpr float	Q8K_SCALE_FACTOR = 127.0f

constexpr int8_t	Q4K_OFFSET = 8
	Offset values for quantization methods.

constexpr int8_t	Q6K_OFFSET = 32

Detailed Description

Parser for GGUF (GPT-Generated Unified Format) files.

This file contains constants and functions for parsing GGUF format files, which are used to store language models and their associated metadata. The format supports various quantization methods and tensor storage options.

Definition in file gguf_parser.h.

Function Documentation

◆ load_gguf_meta()

GGUFData load_gguf_meta	(	const std::string &	filename,
		bool	use_mmap
	)

Loads GGUF metadata and optionally memory-maps tensor data.

Parses the header, metadata, and tensor information from a GGUF file. If mmap is enabled, it will also memory-map the tensor data region. If mmap is disabled, tensor data pointers will be null and fd will be -1.

Parameters

filename	Path to the GGUF file.
use_mmap	Whether to memory-map the tensor data block.

Returns: GGUFData structure containing loaded information.

Exceptions

std::runtime_error on file I/O or format errors.

Definition at line 123 of file gguf_parser.cpp.

                                                                  {
  Logger::info("Attempting to load GGUF file: " + filename + (use_mmap ? " with mmap" : " without mmap"));
  std::ifstream metadata_file(filename, std::ios::binary);
  if (!metadata_file.is_open()) {
    throw std::runtime_error("Failed to open file for metadata: " + filename);
  }

  GGUFData result;
  // The file_descriptor for mmap will be opened separately and stored in result.
  // The GGUFData destructor will handle closing this fd and munmap.

  read_raw(metadata_file, result.header.magic);
  read_raw(metadata_file, result.header.version);
  read_raw(metadata_file, result.header.tensor_count);
  read_raw(metadata_file, result.header.metadata_kv_count);

  {
    std::stringstream ss;
    ss << "Read Header:\n"
       << "    Magic: 0x" << std::hex << result.header.magic << std::dec << "\n"
       << "    Version: " << result.header.version << "\n"
       << "    Tensor Count: " << result.header.tensor_count << "\n"
       << "    Metadata KV Count: " << result.header.metadata_kv_count;
    Logger::info(ss.str());
  }

  if (result.header.magic != GGUF_MAGIC) {
    throw std::runtime_error("Not a valid GGUF file (magic number mismatch).");
  }

  Logger::info("Reading Metadata (" +
               std::to_string(result.header.metadata_kv_count) + " pairs)...");
  for (uint64_t i = 0; i < result.header.metadata_kv_count; ++i) {
    std::string key;
    GGUFValueType value_type_enum;
    try {
      key = read_gguf_string(metadata_file);
      read_raw(metadata_file, value_type_enum);

      switch (value_type_enum) {
        case GGUFValueType::UINT8: {
          uint8_t val;
          read_raw(metadata_file, val);
          result.metadata[key] = val;
          break;
        }
        case GGUFValueType::INT8: {
          int8_t val;
          read_raw(metadata_file, val);
          result.metadata[key] = val;
          break;
        }
        case GGUFValueType::UINT16: {
          uint16_t val;
          read_raw(metadata_file, val);
          result.metadata[key] = val;
          break;
        }
        case GGUFValueType::INT16: {
          int16_t val;
          read_raw(metadata_file, val);
          result.metadata[key] = val;
          break;
        }
        case GGUFValueType::UINT32: {
          uint32_t val;
          read_raw(metadata_file, val);
          result.metadata[key] = val;
          break;
        }
        case GGUFValueType::INT32: {
          int32_t val;
          read_raw(metadata_file, val);
          result.metadata[key] = val;
          break;
        }
        case GGUFValueType::FLOAT32: {
          float val;
          read_raw(metadata_file, val);
          result.metadata[key] = val;
          break;
        }
        case GGUFValueType::BOOL: {
          uint8_t byte;
          read_raw(metadata_file, byte);
          result.metadata[key] = (byte != 0);
          break;
        }
        case GGUFValueType::STRING: {
          std::string val = read_gguf_string(metadata_file);
          result.metadata[key] = val;
          break;
        }
        case GGUFValueType::UINT64: {
          uint64_t val;
          read_raw(metadata_file, val);
          result.metadata[key] = val;
          break;
        }
        case GGUFValueType::INT64: {
          int64_t val;
          read_raw(metadata_file, val);
          result.metadata[key] = val;
          break;
        }
        case GGUFValueType::FLOAT64: {
          double val;
          read_raw(metadata_file, val);
          result.metadata[key] = val;
          break;
        }
        case GGUFValueType::ARRAY: {
          GGUFValueType array_type_enum;
          uint64_t count;
          read_raw(metadata_file, array_type_enum);
          read_raw(metadata_file, count);

          GGUFArray array_obj;
          array_obj.type = array_type_enum;
          array_obj.len = count;
          result.metadata[key] = array_obj;
          bool skipped_data = false;
          if (key == "tokenizer.ggml.tokens" &&
              array_type_enum == GGUFValueType::STRING) {
            Logger::info("Loading STRING array data ('" + key + "') with " +
                         std::to_string(count) + " elements...");
            result.tokenizer_tokens.reserve(static_cast<size_t>(count));
            for (uint64_t arr_i = 0; arr_i < count; ++arr_i) {
              result.tokenizer_tokens.push_back(read_gguf_string(metadata_file));
            }
            Logger::info("Loaded tokenizer_tokens. Size: " +
                         std::to_string(result.tokenizer_tokens.size()));
          } else if (key == "tokenizer.ggml.scores" &&
                     array_type_enum == GGUFValueType::FLOAT32) {
            Logger::info("Loading FLOAT32 array data ('" + key + "') with " +
                         std::to_string(count) + " elements...");
            result.tokenizer_scores.resize(static_cast<size_t>(count));
            metadata_file.read(reinterpret_cast<char*>(result.tokenizer_scores.data()),
                      static_cast<std::streamsize>(count * sizeof(float)));
            if (!metadata_file) {
              throw std::runtime_error(
                  "GGUF Error: Failed to read scores array data.");
            }
            Logger::info("Loaded tokenizer_scores. Size: " +
                         std::to_string(result.tokenizer_scores.size()));
          } else if (key == "tokenizer.ggml.token_type" &&
                     (array_type_enum == GGUFValueType::UINT32 || array_type_enum == GGUFValueType::INT32) ) {
            Logger::info("Loading " + std::string(array_type_enum == GGUFValueType::UINT32 ? "UINT32" : "INT32") +
                         " array data ('" + key + "') with " +
                         std::to_string(count) + " elements...");
            result.tokenizer_token_types.resize(static_cast<size_t>(count));
            if (array_type_enum == GGUFValueType::UINT32) {
                metadata_file.read(
                    reinterpret_cast<char*>(result.tokenizer_token_types.data()),
                    static_cast<std::streamsize>(count * sizeof(uint32_t)));
            } else { // GGUFValueType::INT32
                std::vector<int32_t> temp_s32_types(static_cast<size_t>(count));
                metadata_file.read(
                    reinterpret_cast<char*>(temp_s32_types.data()),
                    static_cast<std::streamsize>(count * sizeof(int32_t)));
                for(size_t k=0; k < count; ++k) {
                    result.tokenizer_token_types[k] = static_cast<uint32_t>(temp_s32_types[k]);
                }
            }
            if (!metadata_file) {
              throw std::runtime_error(
                  "GGUF Error: Failed to read token_type array data.");
            }
            Logger::info("Loaded tokenizer_token_types. Size: " +
                         std::to_string(result.tokenizer_token_types.size()));
          } else if (key == "tokenizer.ggml.merges" &&
                     array_type_enum == GGUFValueType::STRING) {
            Logger::info("Loading STRING array data ('" + key + "') with " +
                         std::to_string(count) + " elements...");
            result.tokenizer_merges.reserve(static_cast<size_t>(count));
            for (uint64_t arr_i = 0; arr_i < count; ++arr_i) {
              result.tokenizer_merges.push_back(read_gguf_string(metadata_file));
            }
            Logger::info("Loaded tokenizer_merges. Size: " +
                         std::to_string(result.tokenizer_merges.size()));
          } else {
            skipped_data = true;
            Logger::info(
                "Skipping unhandled/non-tokenizer ARRAY data for key '" + key +
                "' (Type: " +
                std::to_string(static_cast<uint32_t>(array_type_enum)) +
                ", Count: " + std::to_string(count) + ")");

            if (array_type_enum == GGUFValueType::STRING) {
              for (uint64_t arr_i = 0; arr_i < count; ++arr_i) {
                try {
                  std::string discarded_str = read_gguf_string(metadata_file);
                } catch (const std::exception& e) {
                  Logger::error("Error skipping string element " +
                                std::to_string(arr_i) + " for key '" + key +
                                "': " + e.what());
                  throw;
                }
              }
            } else {
              size_t element_size = gguf_value_type_size(array_type_enum);
              if (element_size == 0) {
                throw std::runtime_error(
                    "Cannot skip array for key '" + key +
                    "' with unsupported or variable-sized element type: " +
                    std::to_string(static_cast<uint32_t>(array_type_enum)));
              }

              if (count > 0 &&
                  element_size > std::numeric_limits<uint64_t>::max() / count) {
                throw std::overflow_error(
                    "Array size overflow calculating skip amount for key '" +
                    key + "'");
              }
              uint64_t total_size_to_skip = count * element_size;
              if (total_size_to_skip > 0) {
                metadata_file.seekg(static_cast<std::streamoff>(total_size_to_skip),
                           std::ios::cur);
                if (!metadata_file) {
                  throw std::runtime_error(
                      "GGUF Error: Failed to seek past array data for key '" +
                      key + "'");
                }
              }
            }
          }
          break;
        }
        default: {
          throw std::runtime_error(
              "Unknown metadata type encountered: " +
              std::to_string(static_cast<uint32_t>(value_type_enum)) +
              " for key: " + key);
        }
      }
    } catch (const std::exception& e) {
      std::string error_key =
          key.empty() ? "(unknown key, error during key read)" : key;
      Logger::error(
          "Error reading metadata for key: '" + error_key +
          "' (type: " + std::to_string(static_cast<uint32_t>(value_type_enum)) +
          ") - " + e.what());
      throw;
    }
  }
  Logger::info("Finished reading metadata.");

  result.tensor_infos.reserve(static_cast<size_t>(result.header.tensor_count));
  Logger::info("Reading Tensor Info (" +
               std::to_string(result.header.tensor_count) + " tensors)...");
  uint64_t accumulated_offset_debug = 0;
  for (uint64_t i = 0; i < result.header.tensor_count; ++i) {
    GGUFTensorInfo info;
    try {
      info.name = read_gguf_string(metadata_file);

      uint32_t n_dims;
      read_raw(metadata_file, n_dims);
      if (n_dims > GGUF_MAX_TENSOR_DIMS) {
        throw std::runtime_error("Tensor '" + info.name +
                                 "' has unsupported number of dimensions: " +
                                 std::to_string(n_dims));
      }
      info.shape.resize(n_dims);
      for (uint32_t d = 0; d < n_dims; ++d) {
        read_raw(metadata_file, info.shape[d]);
      }

      uint32_t ggml_type_u32;
      read_raw(metadata_file, ggml_type_u32);
      info.type = static_cast<GGMLType>(ggml_type_u32);

      uint64_t pos_before_offset_read = metadata_file.tellg();

      read_raw(metadata_file, info.offset);

      std::stringstream ss_offset_log;
      ss_offset_log
          << "[GGUF_TENSOR_INFO] Tensor " << i << " ('" << info.name
          << "'):" << "\n  Raw offset from file: " << info.offset
          << "\n  File pos before offset read: " << pos_before_offset_read
          << "\n  Calculated accumulated_offset_debug (before this tensor): "
          << accumulated_offset_debug;

      info.num_elements = 1;
      for (uint64_t dim : info.shape) {
        if (dim > 0 &&
            info.num_elements > std::numeric_limits<uint64_t>::max() / dim) {
          throw std::overflow_error(
              "Tensor dimension overflow calculating num_elements for tensor "
              "'" +
              info.name + "'");
        }
        info.num_elements *= dim;
      }

      size_t type_size = ggml_type_size(info.type);
      size_t block_size = ggml_type_block_size(info.type);

      if (block_size == 0 && info.num_elements > 0) {
        throw std::runtime_error(
            "Tensor '" + info.name +
            "' has unknown or unsupported type: " + std::to_string(info.type));
      }

      if (block_size > 1) {
        if (info.num_elements % block_size != 0) {
          throw std::runtime_error("Tensor '" + info.name + "' num_elements (" +
                                   std::to_string(info.num_elements) +
                                   ") not divisible by block_size (" +
                                   std::to_string(block_size) + ") for type " +
                                   ggml_type_name(info.type));
        }
        uint64_t num_blocks = info.num_elements / block_size;
        if (type_size > 0 &&
            num_blocks > std::numeric_limits<uint64_t>::max() / type_size) {
          throw std::overflow_error(
              "Tensor size overflow calculating size_in_bytes for tensor '" +
              info.name + "'");
        }
        info.size_in_bytes = static_cast<size_t>(num_blocks * type_size);
      } else {
        if (type_size > 0 &&
            info.num_elements >
                std::numeric_limits<uint64_t>::max() / type_size) {
          throw std::overflow_error(
              "Tensor size overflow calculating size_in_bytes for tensor '" +
              info.name + "'");
        }
        info.size_in_bytes = static_cast<size_t>(info.num_elements * type_size);
      }

      ss_offset_log << "\n  Calculated size_in_bytes for this tensor: "
                    << info.size_in_bytes;
      Logger::info(ss_offset_log.str());
      accumulated_offset_debug += info.size_in_bytes;

      result.tensor_infos.push_back(info);
      {
        std::stringstream ss_tensor;
        ss_tensor << "Tensor " << i << ": Name='" << info.name
                  << "', Type=" << ggml_type_name(info.type) << ", Shape=[ ";
        for (size_t d = 0; d < info.shape.size(); ++d)
          ss_tensor << info.shape[d]
                    << (d == info.shape.size() - 1 ? "" : ", ");
        ss_tensor << " ], Offset=" << info.offset
                  << ", Size=" << info.size_in_bytes << " bytes";
        Logger::info(ss_tensor.str());
      }
    } catch (const std::exception& e) {
      std::string tensor_name =
          info.name.empty() ? ("(unknown, index " + std::to_string(i) + ")")
                            : info.name;
      Logger::error("Error reading tensor info for tensor " + tensor_name +
                    ": " + e.what());
      throw;
    }
  }
  Logger::info("Finished reading tensor info.");

  Logger::info("Populating tensor_infos_map...");
  for (const auto& tinfo : result.tensor_infos) {
    if (result.tensor_infos_map.count(tinfo.name)) {
      Logger::warning("Duplicate tensor name found in GGUF: '" + tinfo.name +
                      "'. Overwriting entry in map.");
    }
    result.tensor_infos_map[tinfo.name] = tinfo;
  }
  Logger::info("Finished populating tensor_infos_map. Map size: " +
               std::to_string(result.tensor_infos_map.size()));

  uint64_t alignment = GGUF_DEFAULT_ALIGNMENT;
  try {
    if (result.metadata.count("general.alignment")) {
      uint32_t align_val =
          std::get<uint32_t>(result.metadata["general.alignment"]);
      if (align_val > 0) {
        alignment = align_val;
      }
      Logger::info("Using alignment value from metadata: " +
                   std::to_string(alignment));
    } else {
      Logger::info(
          "Metadata key 'general.alignment' not found. Using default "
          "alignment: " +
          std::to_string(alignment));
    }
  } catch (const std::bad_variant_access& e) {
    Logger::warning(
        "Could not read 'general.alignment' metadata as uint32. Using default "
        "alignment: " +
        std::to_string(alignment));
  } catch (const std::exception& e) {
    Logger::warning("Error accessing 'general.alignment' metadata: " +
                    std::string(e.what()) +
                    ". Using default alignment: " + std::to_string(alignment));
  }
  result.data_alignment = alignment; // Store the determined alignment

  uint64_t current_pos_metadata_stream = metadata_file.tellg();
  Logger::info("[GGUF_LOAD] Current file position (metadata stream) before padding seek: " +
               std::to_string(current_pos_metadata_stream));
  uint64_t padding = (alignment - (current_pos_metadata_stream % alignment)) % alignment;
  Logger::info("[GGUF_LOAD] Calculated padding: " + std::to_string(padding));

  uint64_t actual_data_start_offset_in_file = current_pos_metadata_stream + padding;
  Logger::info(
      "[GGUF_LOAD] Calculated actual_data_start_offset_in_file (for mmap): " +
      std::to_string(actual_data_start_offset_in_file));

  metadata_file.close();
  Logger::info("[GGUF_LOAD] Metadata ifstream closed.");

  if (!use_mmap) {
    Logger::info("[GGUF_LOAD] mmap is disabled by configuration. Loading tensor data into memory using OPTIMIZED bulk I/O.");

    uint64_t total_tensor_data_size = 0;
    for (const auto& tensor_info : result.tensor_infos) {
      total_tensor_data_size = std::max(total_tensor_data_size, tensor_info.offset + tensor_info.size_in_bytes);
    }

    if (total_tensor_data_size > 0) {
      result.tensor_data.resize(total_tensor_data_size);

      std::ifstream tensor_file(filename, std::ios::binary);
      if (!tensor_file.is_open()) {
        throw std::runtime_error("Failed to open file for tensor data reading: " + filename);
      }

      tensor_file.seekg(actual_data_start_offset_in_file);
      if (!tensor_file) {
        throw std::runtime_error("Failed to seek to tensor data start in file: " + filename);
      }

      // OPTIMIZATION: Use larger buffer for bulk reading to reduce I/O overhead
      constexpr size_t BULK_READ_BUFFER_SIZE = 64 * 1024 * 1024; // 64MB chunks
      size_t bytes_remaining = total_tensor_data_size;
      size_t bytes_read_total = 0;

      Logger::info("[GGUF_LOAD] Reading " + std::to_string(total_tensor_data_size) + " bytes in optimized " + std::to_string(BULK_READ_BUFFER_SIZE / (1024*1024)) + "MB chunks...");

      while (bytes_remaining > 0) {
        size_t chunk_size = std::min(bytes_remaining, BULK_READ_BUFFER_SIZE);

        tensor_file.read(reinterpret_cast<char*>(result.tensor_data.data() + bytes_read_total), chunk_size);
        if (!tensor_file) {
          throw std::runtime_error("Failed to read tensor data chunk at offset " + std::to_string(bytes_read_total) + " from file: " + filename);
        }

        bytes_read_total += chunk_size;
        bytes_remaining -= chunk_size;

        if (bytes_read_total % (256 * 1024 * 1024) == 0) { // Log every 256MB
          Logger::info("[GGUF_LOAD] Progress: " + std::to_string(bytes_read_total / (1024*1024)) + "MB / " + std::to_string(total_tensor_data_size / (1024*1024)) + "MB loaded");
        }
      }

      tensor_file.close();
      Logger::info("[GGUF_LOAD] Successfully loaded " + std::to_string(total_tensor_data_size) + " bytes of tensor data using optimized bulk I/O.");

      if (total_tensor_data_size >= 16) {
        std::stringstream ss_bytes;
        ss_bytes << "[GGUF_LOAD] First 16 bytes of tensor data: ";
        for (int i = 0; i < 16; ++i) {
          ss_bytes << "0x" << std::hex << static_cast<int>(result.tensor_data[i]) << " ";
        }
        Logger::info(ss_bytes.str());
      }
    } else {
      Logger::info("[GGUF_LOAD] No tensor data to load (total size is 0).");
    }

    return result;
  }

#ifndef _WIN32
  result.file_descriptor = open(filename.c_str(), O_RDONLY);
  if (result.file_descriptor == -1) {
      throw std::runtime_error("GGUF Error: Failed to open file for mmap: " + filename + " - " + strerror(errno));
  }
  Logger::info("[GGUF_LOAD] File opened for mmap with fd: " + std::to_string(result.file_descriptor));

  struct stat file_stat;
  if (fstat(result.file_descriptor, &file_stat) == -1) {
      close(result.file_descriptor);
      result.file_descriptor = -1;
      throw std::runtime_error("GGUF Error: Failed to fstat file for mmap: " + filename + " - " + strerror(errno));
  }
  uint64_t file_total_size = static_cast<uint64_t>(file_stat.st_size);
#else // _WIN32
  result.h_file = CreateFileA(
      filename.c_str(),
      GENERIC_READ,
      FILE_SHARE_READ,
      NULL,
      OPEN_EXISTING,
      FILE_ATTRIBUTE_NORMAL | FILE_FLAG_RANDOM_ACCESS, // Hint for mmap-like access
      NULL
  );
  if (result.h_file == INVALID_HANDLE_VALUE) {
      throw std::runtime_error("GGUF Error: Failed to open file for mmap (CreateFileA): " + filename + " - " + GetWindowsErrorString(GetLastError()));
  }
  Logger::info("[GGUF_LOAD] File opened for mmap with h_file: " + std::to_string(reinterpret_cast<uintptr_t>(result.h_file)));

  LARGE_INTEGER fileSizeWindows;
  if (!GetFileSizeEx(result.h_file, &fileSizeWindows)) {
      DWORD error_code = GetLastError();
      CloseHandle(result.h_file);
      result.h_file = INVALID_HANDLE_VALUE;
      throw std::runtime_error("GGUF Error: Failed to GetFileSizeEx for mmap: " + filename + " - " + GetWindowsErrorString(error_code));
  }
  uint64_t file_total_size = static_cast<uint64_t>(fileSizeWindows.QuadPart);
#endif

  if (file_total_size < actual_data_start_offset_in_file) {
#ifndef _WIN32
    close(result.file_descriptor);
    result.file_descriptor = -1;
#else
    CloseHandle(result.h_file);
    result.h_file = INVALID_HANDLE_VALUE;
#endif
    throw std::runtime_error(
        "GGUF Error: File total size (" + std::to_string(file_total_size) +
        ") is less than calculated actual_data_start_offset_in_file (" + std::to_string(actual_data_start_offset_in_file) + ").");
  }

  uint64_t tensor_data_block_size_on_disk = file_total_size - actual_data_start_offset_in_file;
  Logger::info("[GGUF_LOAD] Calculated tensor_data_block_size_on_disk (for mmap length calculation): " +
               std::to_string(tensor_data_block_size_on_disk) + " bytes.");

  long page_size;
#ifndef _WIN32
  page_size = sysconf(_SC_PAGE_SIZE);
  if (page_size == -1) {
      close(result.file_descriptor);
      result.file_descriptor = -1;
      throw std::runtime_error(std::string("GGUF Error: Failed to get page size using sysconf - ") + strerror(errno));
  }
#else // _WIN32
  SYSTEM_INFO sysInfo;
  GetSystemInfo(&sysInfo);
  // For MapViewOfFile, offsets must be aligned to dwAllocationGranularity.
  // Page size (dwPageSize) might be smaller, but dwAllocationGranularity is the key for mmap view offsets.
  page_size = static_cast<long>(sysInfo.dwAllocationGranularity);
  if (page_size <= 0) { // Sanity check
      CloseHandle(result.h_file);
      result.h_file = INVALID_HANDLE_VALUE;
      throw std::runtime_error("GGUF Error: Failed to get valid system allocation granularity (page_size equivalent for mmap offset).");
  }
#endif
  Logger::info("[GGUF_LOAD] System page/allocation granularity for mmap offset: " + std::to_string(page_size));

  uint64_t mmap_offset = (actual_data_start_offset_in_file / page_size) * page_size; // Align offset down to page boundary
  result.offset_diff_for_mmap = static_cast<size_t>(actual_data_start_offset_in_file - mmap_offset);
  size_t mmap_length = static_cast<size_t>(tensor_data_block_size_on_disk + result.offset_diff_for_mmap);

  Logger::info("[GGUF_LOAD] Aligning mmap: actual_data_start_offset_in_file=" + std::to_string(actual_data_start_offset_in_file) +
               ", mmap_offset=" + std::to_string(mmap_offset) + // This is the offset from file start for mmap view
               ", offset_diff_for_mmap=" + std::to_string(result.offset_diff_for_mmap) + // Bytes from mmap view start to actual tensor data start
               ", mmap_length=" + std::to_string(mmap_length)); // Total length of the mmap view

  if (mmap_length > 0) {
    result.mapped_tensor_data_size = mmap_length;
#ifndef _WIN32
    result.mapped_tensor_data = mmap(nullptr, result.mapped_tensor_data_size,
                                         PROT_READ, MAP_SHARED,
                                         result.file_descriptor, static_cast<off_t>(mmap_offset));
#else // _WIN32
    result.h_map_file = CreateFileMapping(
        result.h_file,
        NULL,
        PAGE_READONLY,
        0,
        0,
        NULL
    );
    if (result.h_map_file == NULL) {
        DWORD error_code = GetLastError();
        CloseHandle(result.h_file);
        result.h_file = INVALID_HANDLE_VALUE;
        throw std::runtime_error("GGUF Error: CreateFileMapping failed - " + GetWindowsErrorString(error_code));
    }

    // MapViewOfFile's dwFileOffsetHigh/Low parameters form the 64-bit offset.
    // This offset (mmap_offset) MUST be a multiple of dwAllocationGranularity (our page_size for Windows).
    DWORD mmap_offset_low = static_cast<DWORD>(mmap_offset & 0xFFFFFFFF);
    DWORD mmap_offset_high = static_cast<DWORD>((mmap_offset >> 32) & 0xFFFFFFFF);

    result.mapped_tensor_data = MapViewOfFile(
        result.h_map_file,
        FILE_MAP_READ,
        mmap_offset_high,
        mmap_offset_low,
        result.mapped_tensor_data_size // This is dwNumberOfBytesToMap
    );
#endif

    if (result.mapped_tensor_data == GGUFData::MMapFailure) { // Use platform-agnostic failure check
        int last_error = 0;
#ifndef _WIN32
        last_error = errno;
        // file_descriptor is closed by GGUFData destructor if it's still valid
#else
        last_error = GetLastError();
        // h_map_file and h_file are closed by GGUFData destructor if they are still valid
#endif
        result.mapped_tensor_data = nullptr;
        result.mapped_tensor_data_size = 0;
        result.offset_diff_for_mmap = 0;
        throw std::runtime_error("GGUF Error: mmap/MapViewOfFile failed. Aligned Offset: " + std::to_string(mmap_offset) +
                                 ", Mmap Length: " + std::to_string(mmap_length) +
#ifndef _WIN32
                                 " - POSIX Error: " + strerror(last_error));
#else
                                 " - Windows Error: " + GetWindowsErrorString(last_error));
#endif
    }
    Logger::info("[GGUF_LOAD] Successfully mmapped tensor data block. Mapped Address: " +
                 std::to_string(reinterpret_cast<uintptr_t>(result.mapped_tensor_data)) +
                 ", Mapped Size: " + std::to_string(result.mapped_tensor_data_size) +
                 " bytes from file offset " + std::to_string(mmap_offset));

    if (result.mapped_tensor_data_size >= (result.offset_diff_for_mmap + 16)) {
      std::stringstream ss_bytes;
      ss_bytes << "[GGUF_LOAD] First 16 bytes of *actual* tensor data (after offset_diff) in mmap: ";
      const uint8_t* actual_data_ptr_debug = static_cast<const uint8_t*>(result.mapped_tensor_data) + result.offset_diff_for_mmap;
      for (int i = 0; i < 16; ++i)
        ss_bytes << "0x" << std::hex << static_cast<int>(actual_data_ptr_debug[i]) << " ";
      Logger::info(ss_bytes.str());
    }

#ifndef _WIN32

    Logger::info("[GGUF_LOAD] Attempting to prefetch mmapped tensor data using posix_madvise(MADV_WILLNEED)...");
    uint8_t* actual_tensor_data_block_start_in_mmap = static_cast<uint8_t*>(result.mapped_tensor_data) + result.offset_diff_for_mmap;

    if (page_size <= 0) {
        Logger::error("[GGUF_LOAD] Invalid page_size for madvise alignment: " + std::to_string(page_size) + ". Skipping prefetch.");
    } else {
        for (const auto& tensor_info : result.tensor_infos) {
            if (tensor_info.size_in_bytes > 0) {
                uintptr_t exact_tensor_start_addr_val = reinterpret_cast<uintptr_t>(actual_tensor_data_block_start_in_mmap + tensor_info.offset);
                void* page_aligned_madvise_addr = reinterpret_cast<void*>(exact_tensor_start_addr_val - (exact_tensor_start_addr_val % static_cast<uintptr_t>(page_size)));
                size_t madvise_length = (exact_tensor_start_addr_val + tensor_info.size_in_bytes) - reinterpret_cast<uintptr_t>(page_aligned_madvise_addr);

                uintptr_t advised_region_start_val = reinterpret_cast<uintptr_t>(page_aligned_madvise_addr);
                uintptr_t advised_region_end_val = advised_region_start_val + madvise_length;
                uintptr_t overall_mmap_start_val = reinterpret_cast<uintptr_t>(result.mapped_tensor_data);
                uintptr_t overall_mmap_end_val = overall_mmap_start_val + result.mapped_tensor_data_size;

                if (advised_region_start_val >= overall_mmap_start_val && advised_region_end_val <= overall_mmap_end_val && advised_region_start_val < advised_region_end_val) { // Added check start < end
                    int ret = posix_madvise(page_aligned_madvise_addr, madvise_length, POSIX_MADV_WILLNEED);
                    if (ret != 0) {
                        Logger::warning("[GGUF_LOAD] posix_madvise failed for tensor '" + tensor_info.name +
                                        "' (addr: " + std::to_string(reinterpret_cast<uintptr_t>(page_aligned_madvise_addr)) +
                                        ", len: " + std::to_string(madvise_length) +
                                        ") with error code " + std::to_string(errno) +
                                        " (" + strerror(errno) + "). Skipping prefetch for this tensor.");
                    }
                } else {
                     Logger::warning("[GGUF_LOAD] Tensor '" + tensor_info.name +
                                     "' calculated region for madvise is invalid or out of overall mmap bounds. Skipping prefetch. "
                                     /* ... detailed log as before ... */ );
                }
            }
        }
    }
    Logger::info("[GGUF_LOAD] Finished POSIX prefetching attempt with posix_madvise.");

#else // _WIN32
    Logger::info("[GGUF_LOAD] Tensor prefetching (posix_madvise) is currently implemented for POSIX systems. Skipping for Windows for now.");
#endif

  } else {
    Logger::info("[GGUF_LOAD] Tensor data block size (or mmap_length) is 0. Nothing to mmap.");
    result.mapped_tensor_data = nullptr; // Ensure it's null if not mapped
    result.mapped_tensor_data_size = 0;
    result.offset_diff_for_mmap = 0;
  }

  Logger::info("GGUF metadata loaded and tensor data (if any) mmapped successfully.");
  return result;
}

References ARRAY, BOOL, GGUFData::data_alignment, Logger::error(), GGUFData::file_descriptor, FLOAT32, FLOAT64, ggml_type_block_size(), ggml_type_name(), ggml_type_size(), GGUF_DEFAULT_ALIGNMENT, GGUF_MAGIC, GGUF_MAX_TENSOR_DIMS, gguf_value_type_size(), GGUFData::header, Logger::info(), INT16, INT32, INT64, INT8, GGUFArray::len, GGUFHeader::magic, GGUFData::mapped_tensor_data, GGUFData::mapped_tensor_data_size, GGUFData::metadata, GGUFHeader::metadata_kv_count, GGUFData::MMapFailure, GGUFTensorInfo::name, GGUFTensorInfo::num_elements, GGUFTensorInfo::offset, GGUFData::offset_diff_for_mmap, read_gguf_string(), read_raw(), GGUFTensorInfo::shape, GGUFTensorInfo::size_in_bytes, STRING, GGUFHeader::tensor_count, GGUFData::tensor_data, GGUFData::tensor_infos, GGUFData::tensor_infos_map, GGUFData::tokenizer_merges, GGUFData::tokenizer_scores, GGUFData::tokenizer_token_types, GGUFData::tokenizer_tokens, GGUFArray::type, GGUFTensorInfo::type, UINT16, UINT32, UINT64, UINT8, GGUFHeader::version, and Logger::warning().

Referenced by TinyLlamaModel::TinyLlamaModel().

◆ read_gguf_string()

std::string read_gguf_string ( std::ifstream & file )

Reads a string from a GGUF format file.

Parameters

file	Input file stream positioned at the start of a string

Returns: The string read from the file

Exceptions

std::runtime_error if string length exceeds GGUF_STRING_MAX_LENGTH

Definition at line 82 of file gguf_parser.cpp.

                                              {
  uint64_t len;
  read_raw(file, len);
  if (len > 0) {
    if (len > GGUF_STRING_MAX_LENGTH) {
      throw std::runtime_error(
          "GGUF Error: String length exceeds sanity limit: " +
          std::to_string(len));
    }
    std::vector<char> buf(static_cast<size_t>(len));
    file.read(buf.data(), static_cast<std::streamsize>(len));
    if (!file) {
      throw std::runtime_error("GGUF Error: Failed to read string data.");
    }
    return std::string(buf.data(), static_cast<size_t>(len));
  } else {
    return "";
  }
}

References GGUF_STRING_MAX_LENGTH, and read_raw().

Referenced by load_gguf_meta().

◆ read_raw()

template<typename T >

void read_raw	(	std::ifstream &	file,
		T &	dest
	)

Reads raw binary data from a file stream.

Template Parameters

T	The type of data to read

Parameters

file	Input file stream
dest	Destination variable to store the read data

Definition at line 62 of file gguf_parser.cpp.

                                          {
  file.read(reinterpret_cast<char*>(&dest), sizeof(T));
  if (!file) {
    throw std::runtime_error(
        "GGUF Error: Failed to read data from file stream.");
  }
}

Referenced by load_gguf_meta(), and read_gguf_string().

Variable Documentation

◆ GGML_Q4K_BLOCK_SIZE

constexpr size_t GGML_Q4K_BLOCK_SIZE = 32

constexpr

Block size for Q4_K format

Definition at line 44 of file gguf_parser.h.

◆ GGML_Q6K_BLOCK_SIZE

constexpr size_t GGML_Q6K_BLOCK_SIZE = 256

constexpr

Block size for Q6_K format

Definition at line 45 of file gguf_parser.h.

◆ GGML_QK8_0

constexpr size_t GGML_QK8_0 = 32

constexpr

Block size for Q8_0 format

Definition at line 43 of file gguf_parser.h.

Referenced by dequantize_q8_0_block(), dequantize_vector_q8_0_to_f32(), TinyLlamaModel::initialize_gpu_and_rope(), TinyLlamaModel::lookup_embedding(), and matvec_q8_0_f32_vector_cpu().

◆ GGML_QK_K

constexpr size_t GGML_QK_K = 256

constexpr

Block size constants for different quantization formats.

Block size for K-quantized formats

Definition at line 42 of file gguf_parser.h.

Referenced by dequantize_q2_k(), dequantize_q3_k(), dequantize_q4_k_m(), dequantize_q6_k(), dequantize_q8_k(), dequantize_vector_q4k_to_f32(), dequantize_vector_q6k_to_f32(), ggml_type_block_size(), TinyLlamaModel::initialize_gpu_and_rope(), TinyLlamaModel::lookup_embedding(), matmul_q8k_f32_batch_cpu(), matvec_q4k_f32_vector_cpu(), matvec_q4k_q8k_cpu(), matvec_q6k_f32_vector_cpu(), matvec_q6k_q8k_cpu(), matvec_q8k_f32_vector_cpu(), quantize_fp32_to_q8_K(), quantize_q4_k_m(), quantize_q6_k(), vec_dot_q4_k_q8_k_cpu(), and vec_dot_q6_k_q8_k_cpu().

◆ GGUF_DEFAULT_ALIGNMENT

constexpr uint64_t GGUF_DEFAULT_ALIGNMENT = 32

constexpr

Constants for GGUF file parsing and validation.

Default alignment for tensor data

Definition at line 29 of file gguf_parser.h.

Referenced by load_gguf_meta().

◆ GGUF_EPSILON

constexpr float GGUF_EPSILON = 1e-10f

constexpr

Constants for numeric stability in calculations.

Minimum value for numeric stability

Definition at line 36 of file gguf_parser.h.

Referenced by quantize_q4_k_m(), and quantize_q6_k().

◆ GGUF_MAGIC

constexpr uint32_t GGUF_MAGIC = 0x46554747

constexpr

GGUF magic number that identifies the file format Spells "GGUF" in ASCII (0x47475546)

Definition at line 24 of file gguf_parser.h.

Referenced by load_gguf_meta().

◆ GGUF_MAX_TENSOR_DIMS

constexpr uint32_t GGUF_MAX_TENSOR_DIMS = 4

constexpr

Maximum number of dimensions for tensors

Definition at line 30 of file gguf_parser.h.

Referenced by load_gguf_meta().

◆ GGUF_SMALL_VAL

constexpr float GGUF_SMALL_VAL = 1e-6f

constexpr

Small value for near-zero comparisons

Definition at line 37 of file gguf_parser.h.

Referenced by quantize_q4_k_m().

◆ GGUF_STRING_MAX_LENGTH

constexpr uint64_t GGUF_STRING_MAX_LENGTH = 1ull << 30

constexpr

Maximum length for strings (1GB)

Definition at line 31 of file gguf_parser.h.

Referenced by read_gguf_string().

◆ Q4K_OFFSET

constexpr int8_t Q4K_OFFSET = 8

constexpr

Offset values for quantization methods.

Offset for Q4_K quantization

Definition at line 63 of file gguf_parser.h.

Referenced by quantize_q4_k_m().

◆ Q4K_SCALE_FACTOR

constexpr float Q4K_SCALE_FACTOR = 15.0f

constexpr

Scale factors for different quantization methods.

Scale factor for Q4_K quantization

Definition at line 56 of file gguf_parser.h.

Referenced by quantize_q4_k_m().

◆ Q6K_OFFSET

constexpr int8_t Q6K_OFFSET = 32

constexpr

Offset for Q6_K quantization

Definition at line 64 of file gguf_parser.h.

Referenced by quantize_q6_k().

◆ Q6K_SCALE_FACTOR

constexpr float Q6K_SCALE_FACTOR = 31.0f

constexpr

Scale factor for Q6_K quantization

Definition at line 57 of file gguf_parser.h.

Referenced by quantize_q6_k().

◆ Q8K_SCALE_FACTOR

constexpr float Q8K_SCALE_FACTOR = 127.0f

constexpr

Scale factor for Q8_K quantization

Definition at line 58 of file gguf_parser.h.

Referenced by quantize_fp32_to_q8_K().

◆ TENSOR_SCALE_MAX

constexpr float TENSOR_SCALE_MAX = 1000.0f

constexpr

Constants for tensor value validation.

Maximum allowed scale value

Definition at line 50 of file gguf_parser.h.

Referenced by dequantize_q2_k().

◆ TENSOR_SCALE_MIN

constexpr float TENSOR_SCALE_MIN = -1000.0f

constexpr

Minimum allowed scale value

Definition at line 51 of file gguf_parser.h.

Referenced by dequantize_q2_k().

Functions

Variables

Detailed Description

Function Documentation

◆ load_gguf_meta()

◆ read_gguf_string()

◆ read_raw()

Variable Documentation

◆ GGML_Q4K_BLOCK_SIZE

◆ GGML_Q6K_BLOCK_SIZE

◆ GGML_QK8_0

◆ GGML_QK_K

◆ GGUF_DEFAULT_ALIGNMENT

◆ GGUF_EPSILON

◆ GGUF_MAGIC

◆ GGUF_MAX_TENSOR_DIMS

◆ GGUF_SMALL_VAL

◆ GGUF_STRING_MAX_LENGTH

◆ Q4K_OFFSET

◆ Q4K_SCALE_FACTOR

◆ Q6K_OFFSET

◆ Q6K_SCALE_FACTOR

◆ Q8K_SCALE_FACTOR

◆ TENSOR_SCALE_MAX

◆ TENSOR_SCALE_MIN
